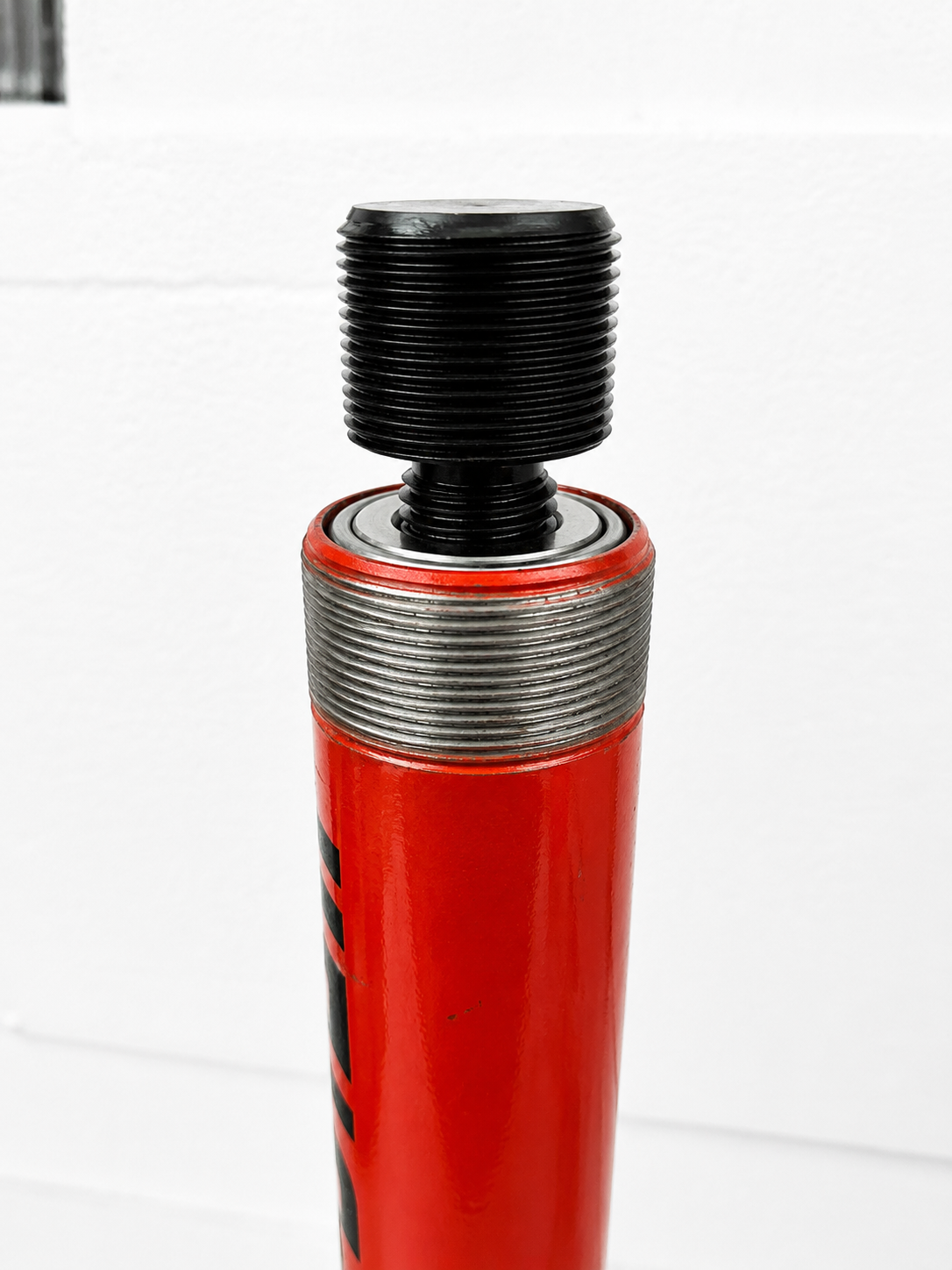

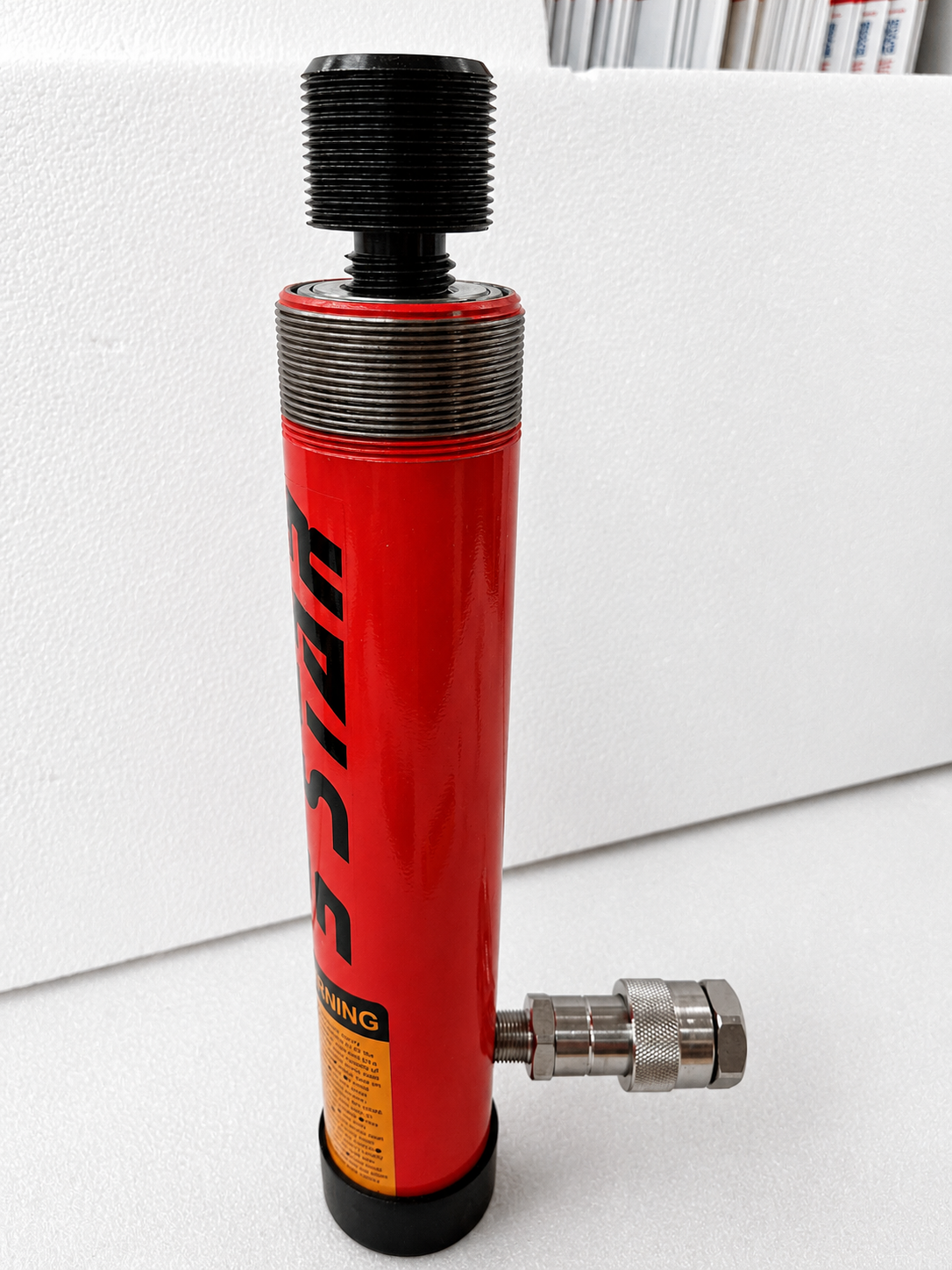

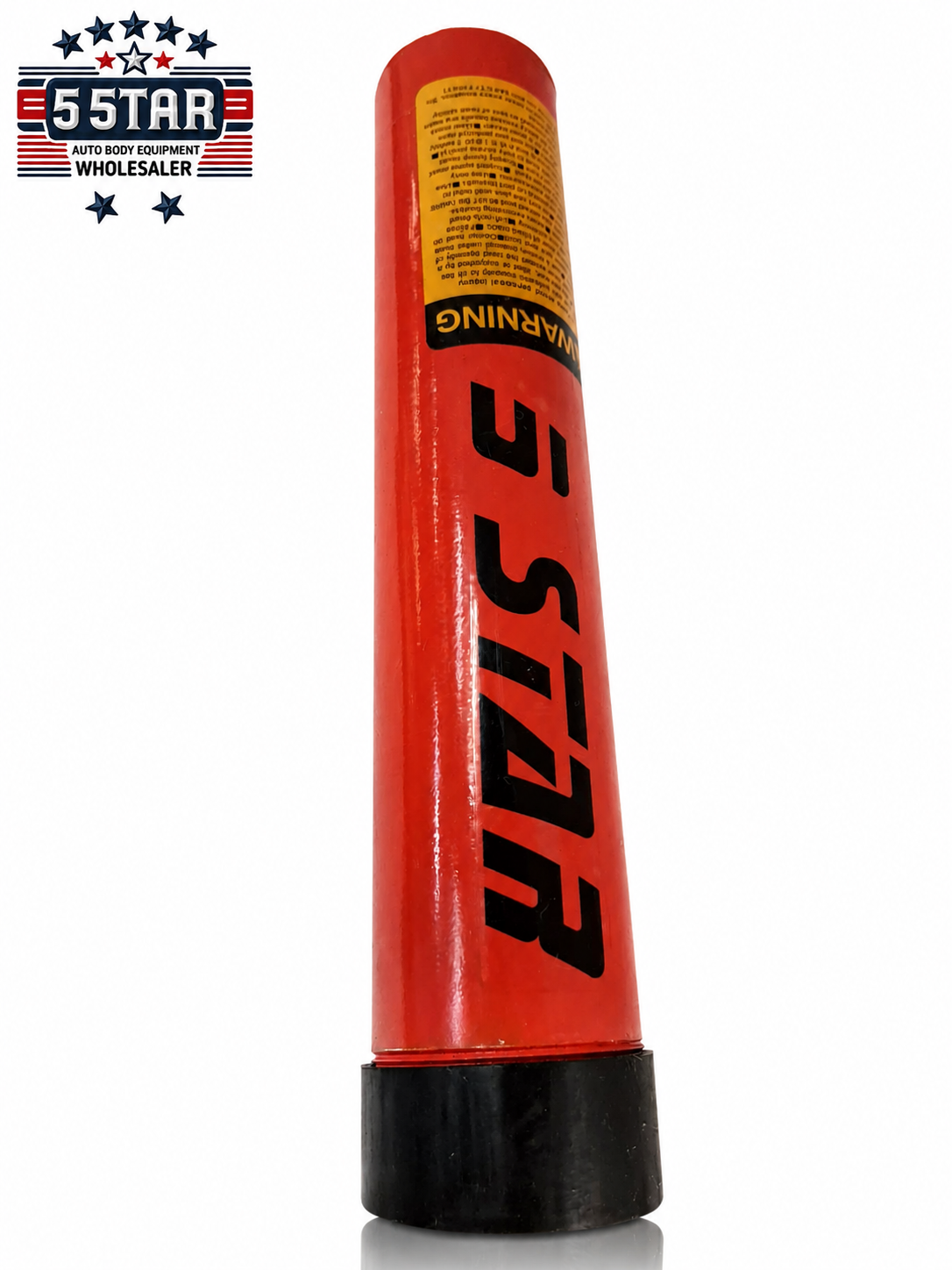

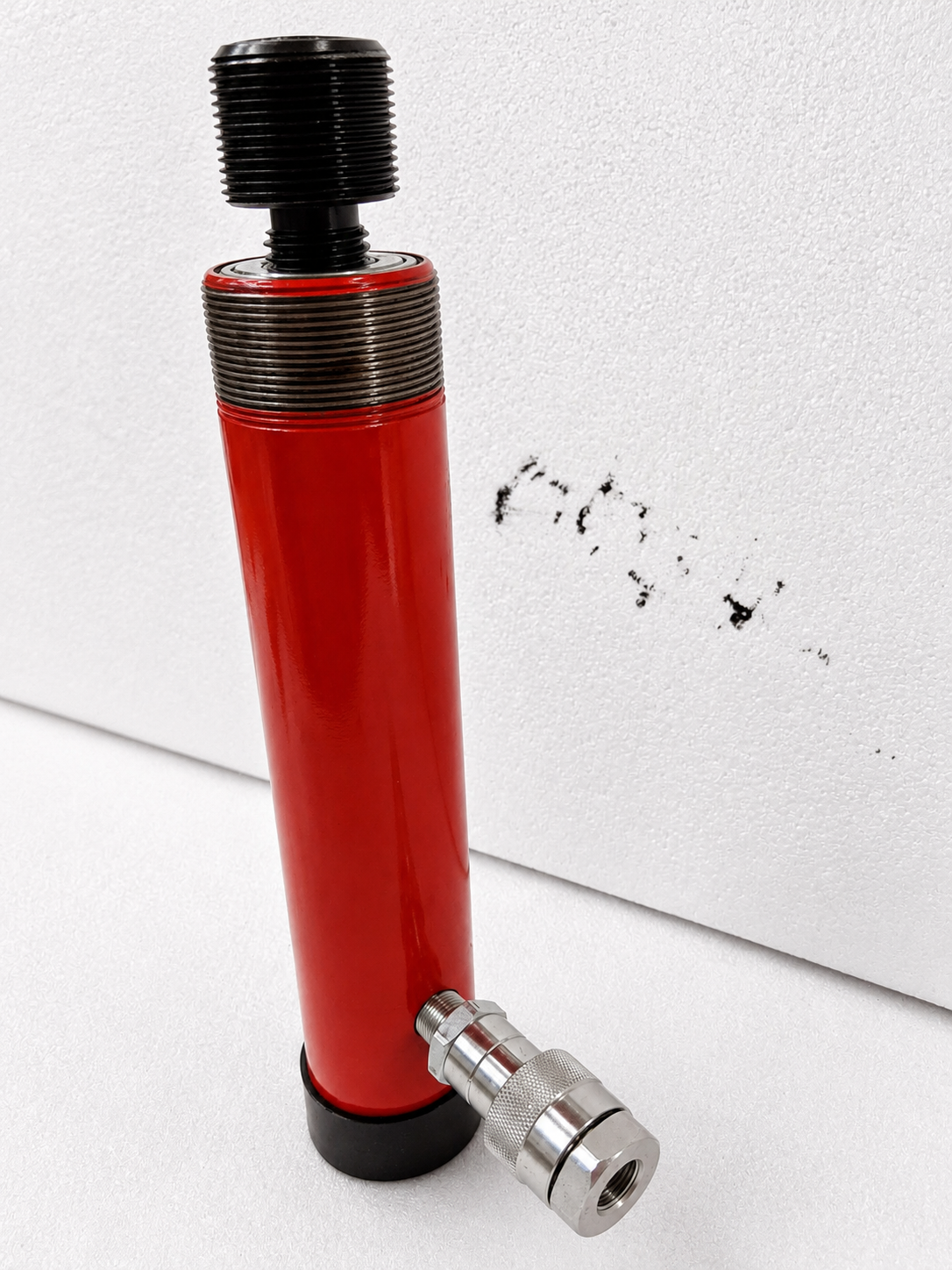

10 Ton 6" Stroke Hydraulic Ram Single Acting
10 Ton 6" Stroke Hydraulic Ram Single Acting
8845 Sheridan Rd
8845 Sheridan Rd
Kenosha WI 53143
United States
Choose options
Product Overview
This 10 Ton 6" Stroke Hydraulic Ram is designed for heavy-duty pulling, pushing, lifting, and pressing applications. With a strong spring return design, threaded top and base, and high operating pressure capability, this ram is a reliable choice for auto body shops, frame machines, hydraulic repair work, fabrication shops, and general industrial use.
Built for professional shop environments, this ram provides strong force output in a compact body size and is ideal for users who need dependable hydraulic power for demanding jobs.
Product
What’s Included
| IS Tool No. | IS Included Tool |
|---|---|
| 10 Ton Ram | 1 × 10 Ton 6" Stroke Hydraulic Ram |

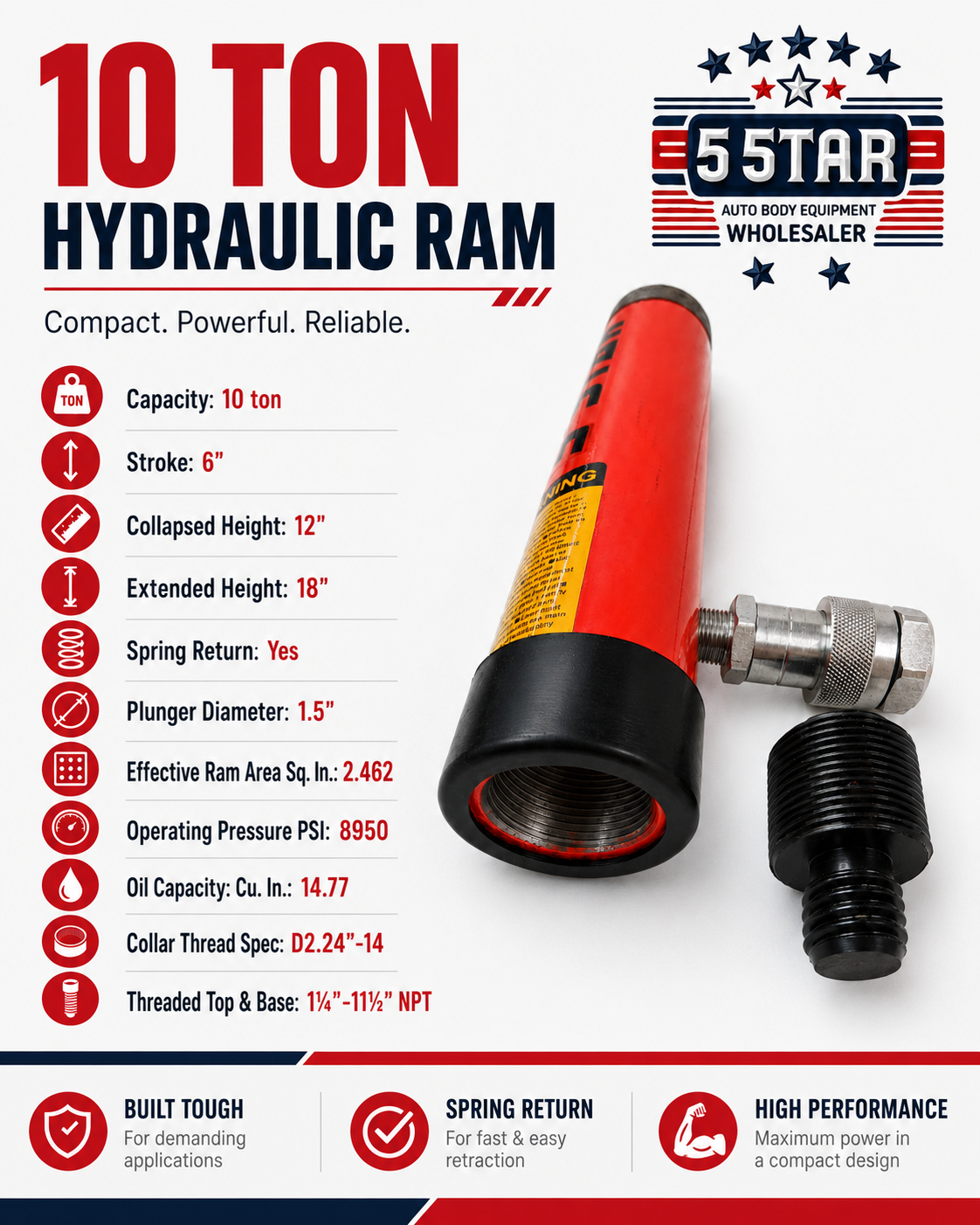

Specifications
| Capacity | 10 Ton |
| Stroke | 6" |

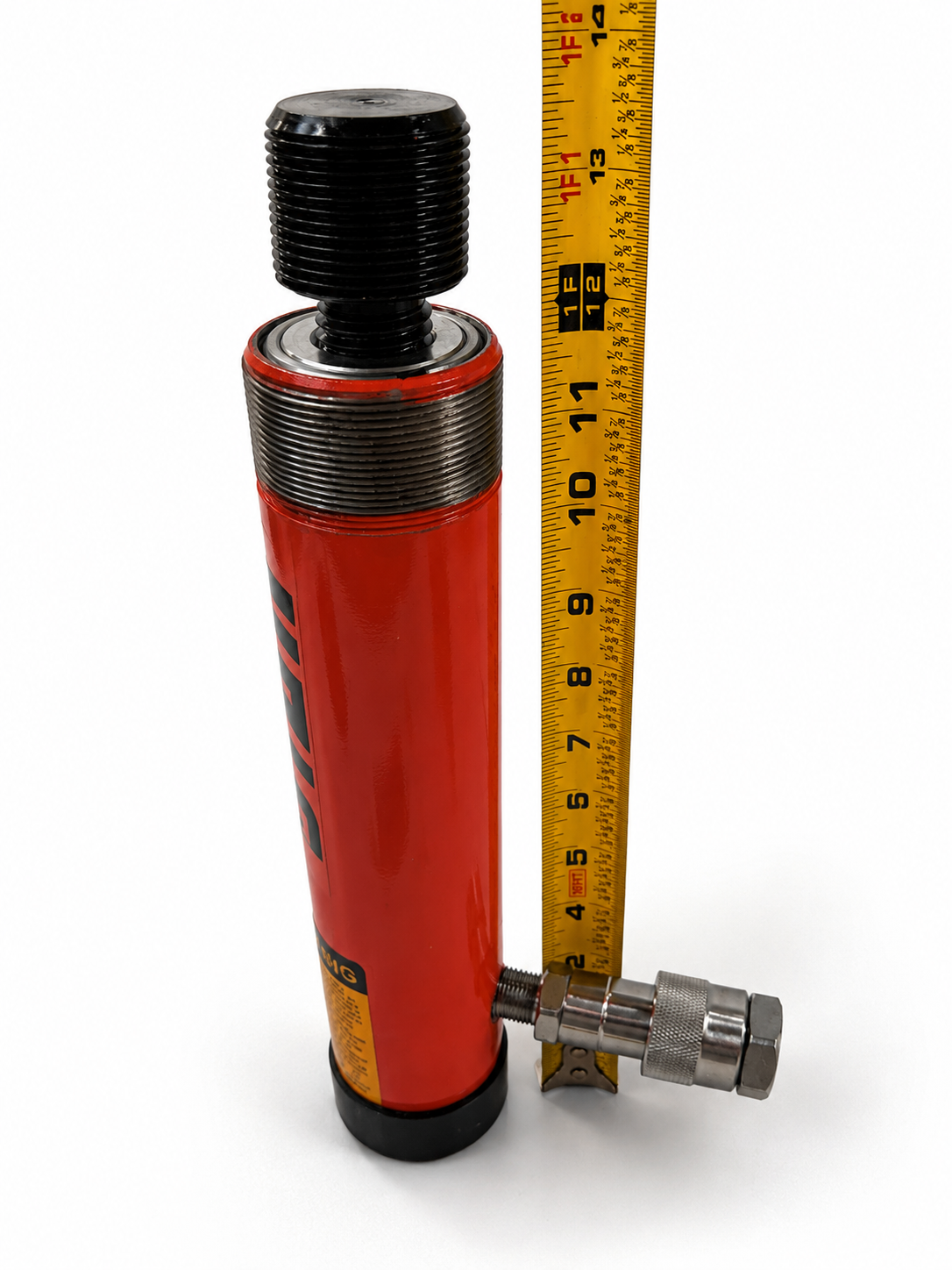

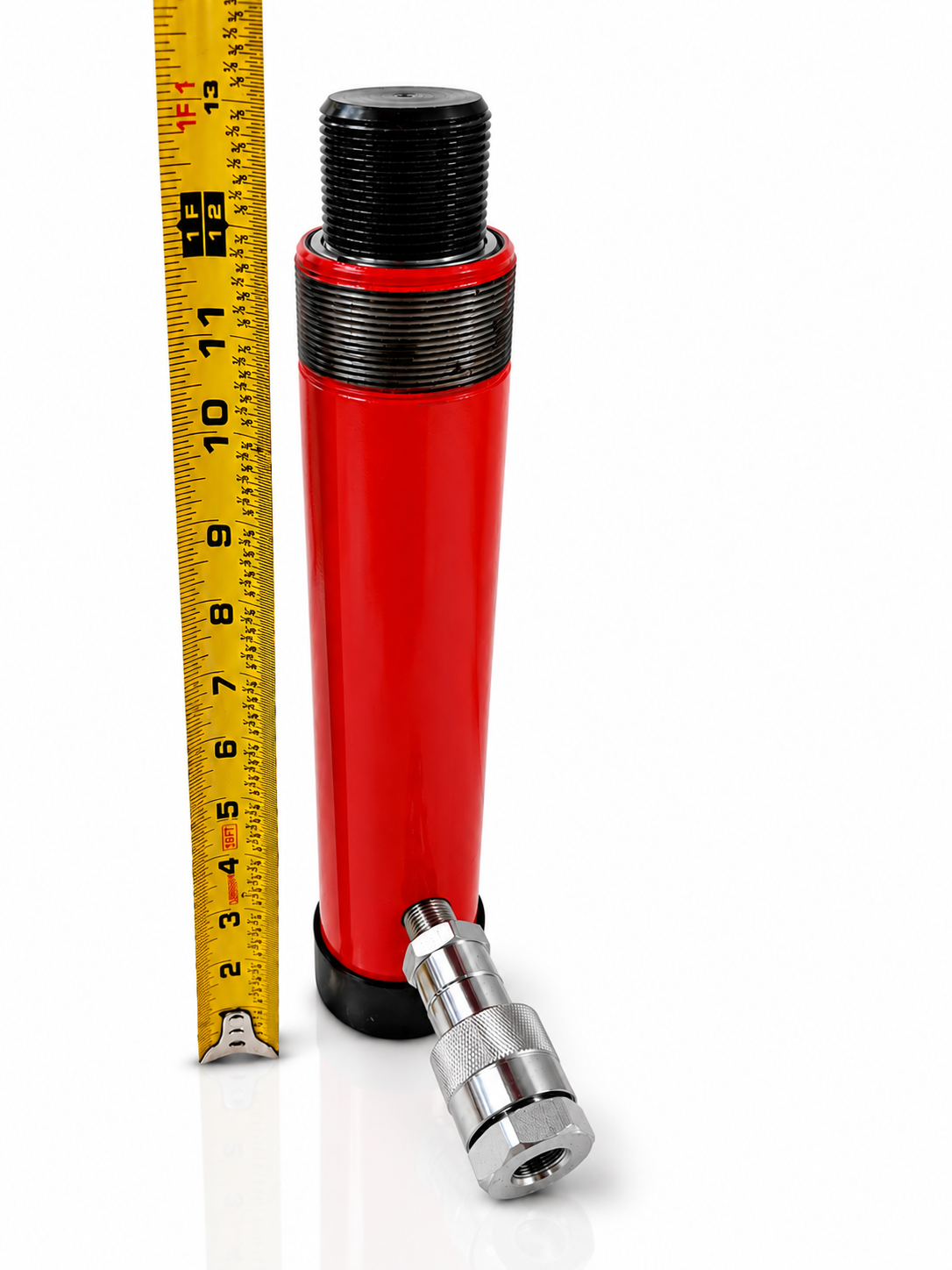

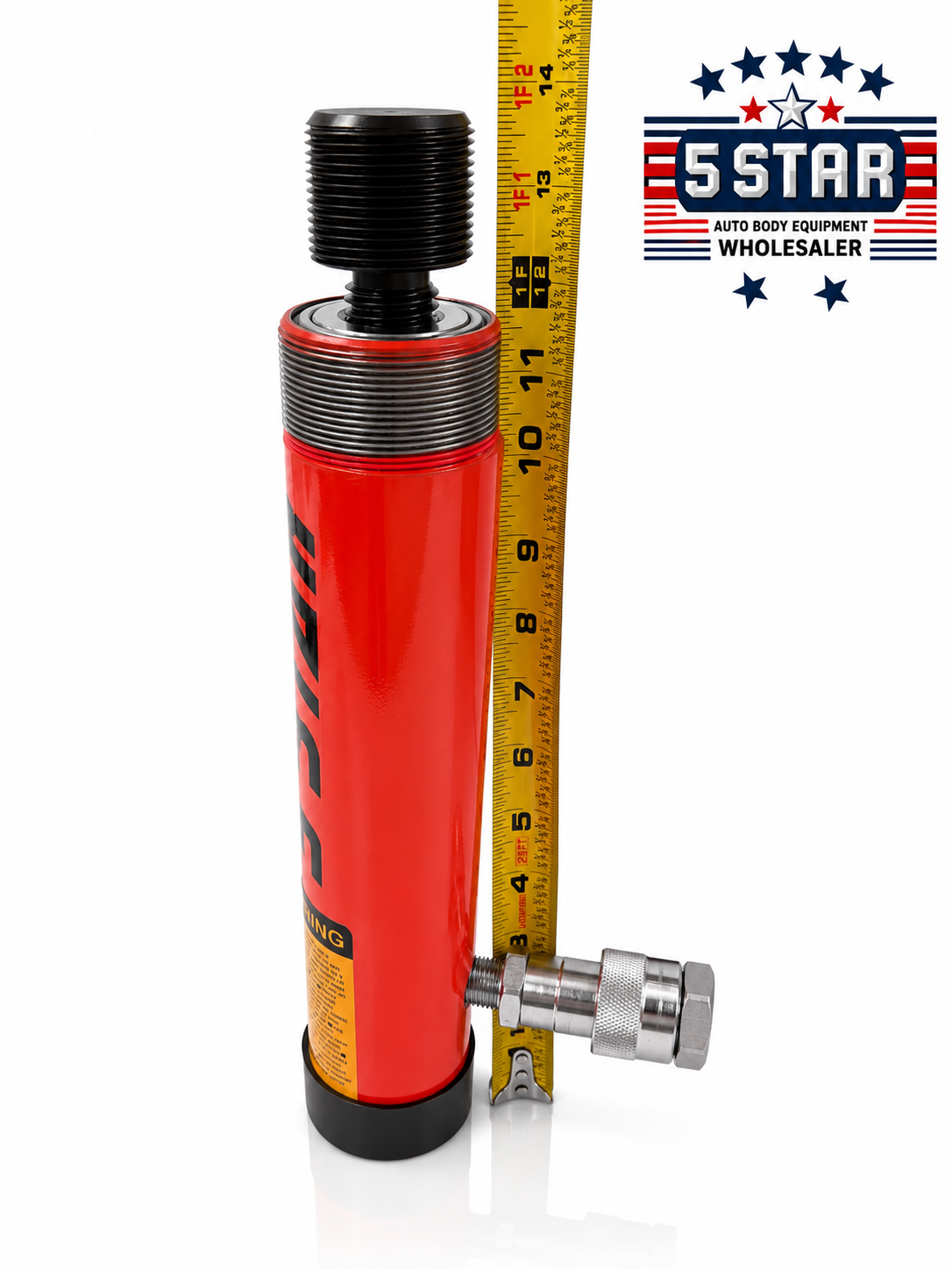

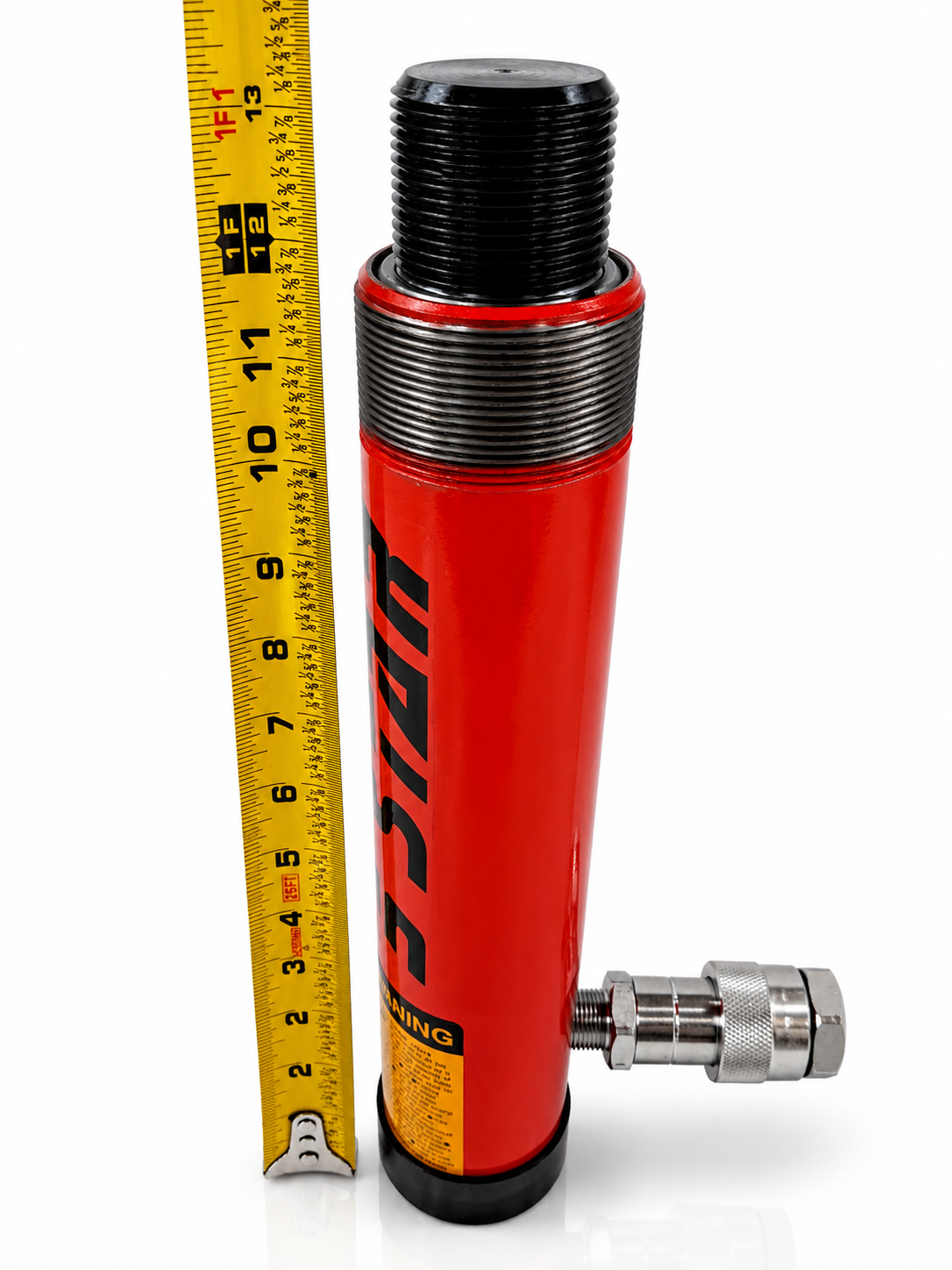

| Collapsed Height | 12" |
| Extended Height | 18" |
| Spring Return | Yes |
| Plunger Diameter | 1.5" |
| Effective Ram Area | 2.462 Sq. In. |
| Operating Pressure | 8950 PSI |
| Oil Capacity | 14.77 Cu. In. |

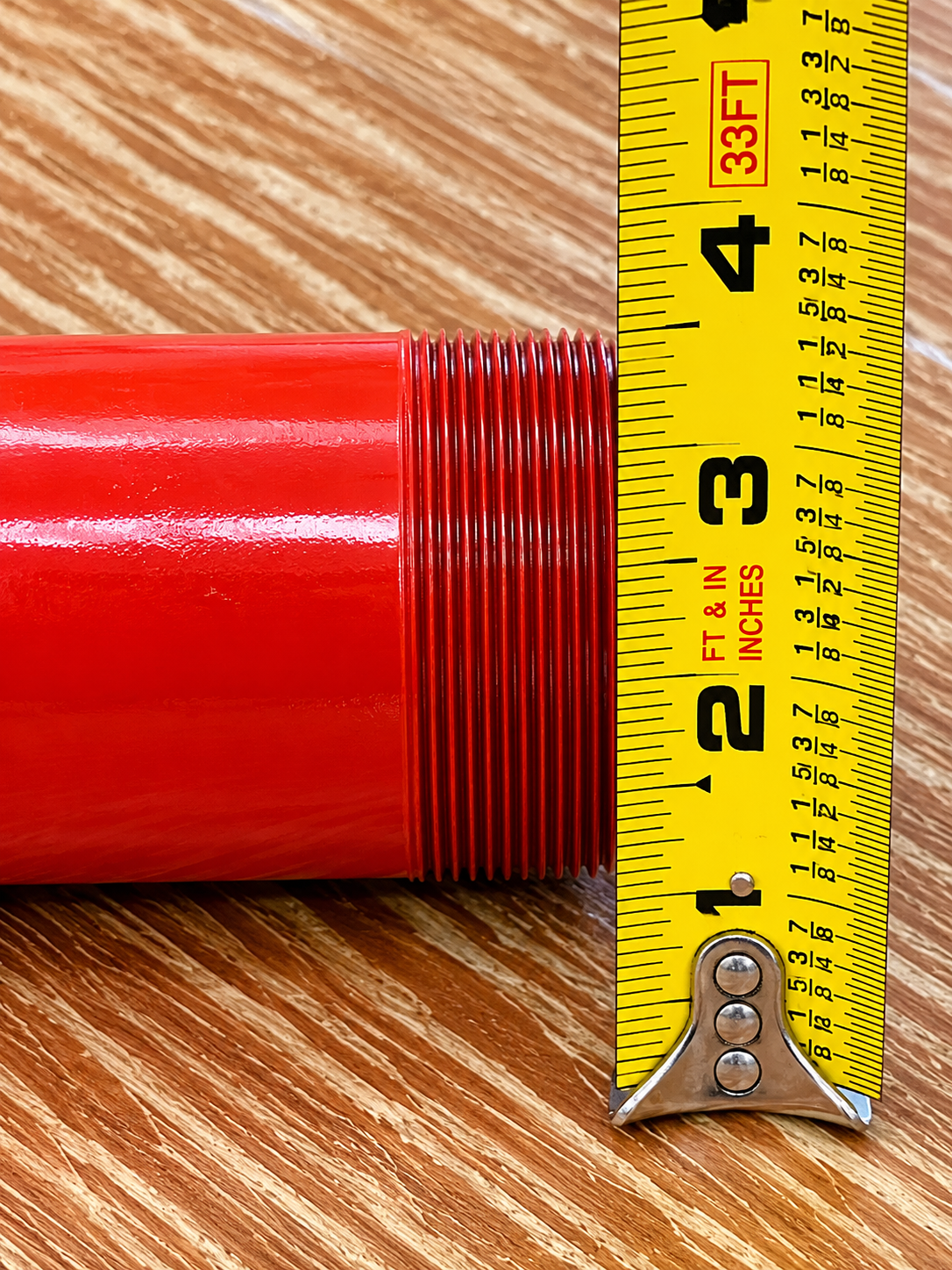

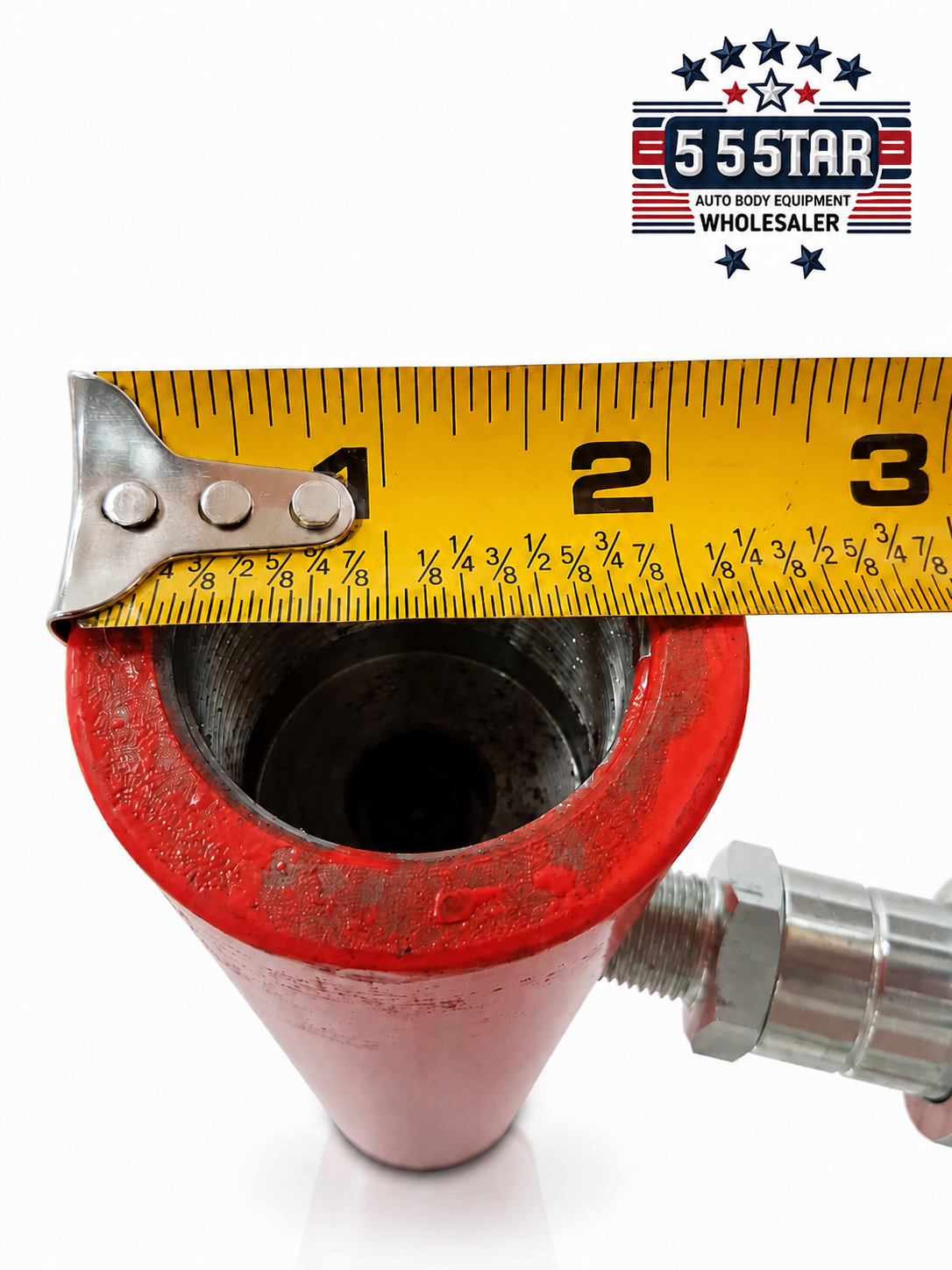

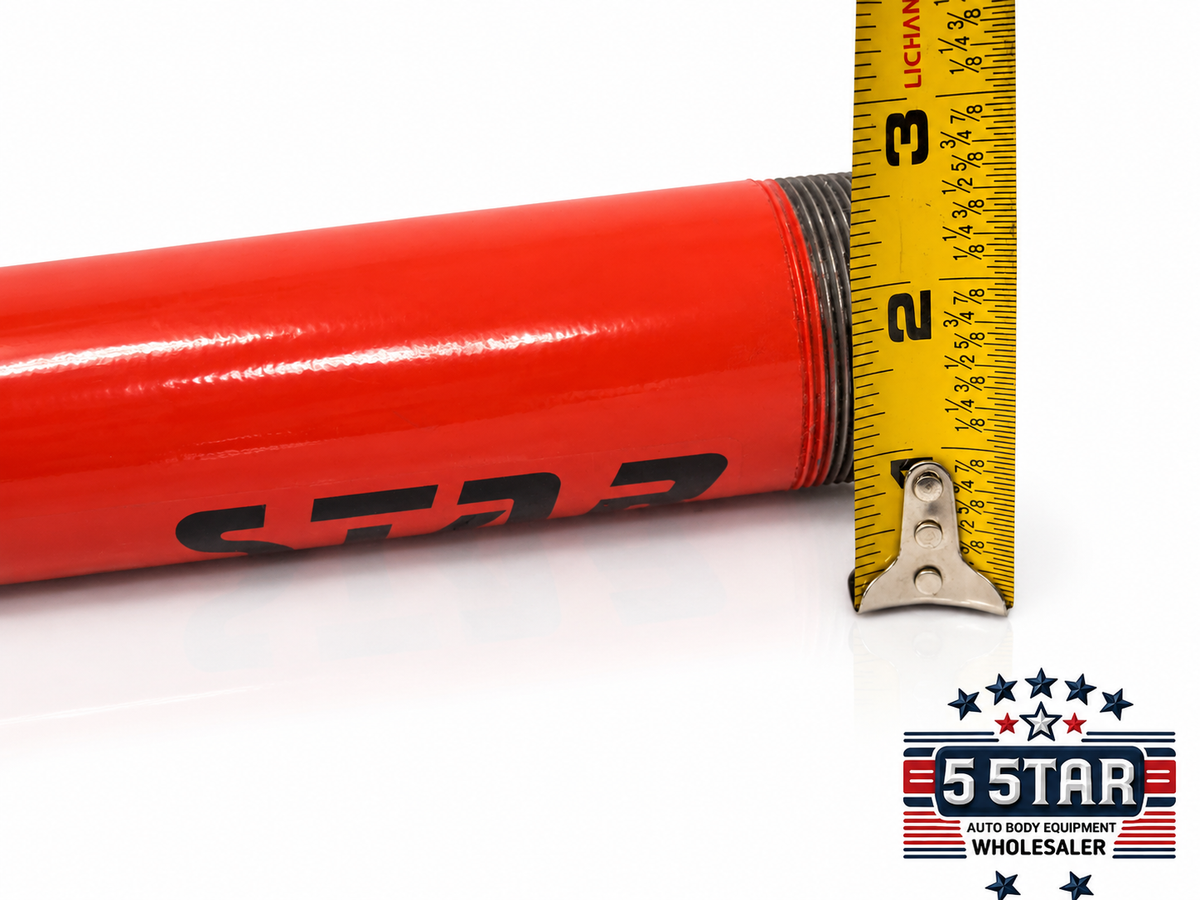

| Collar Thread Spec | D2.24"-14 |

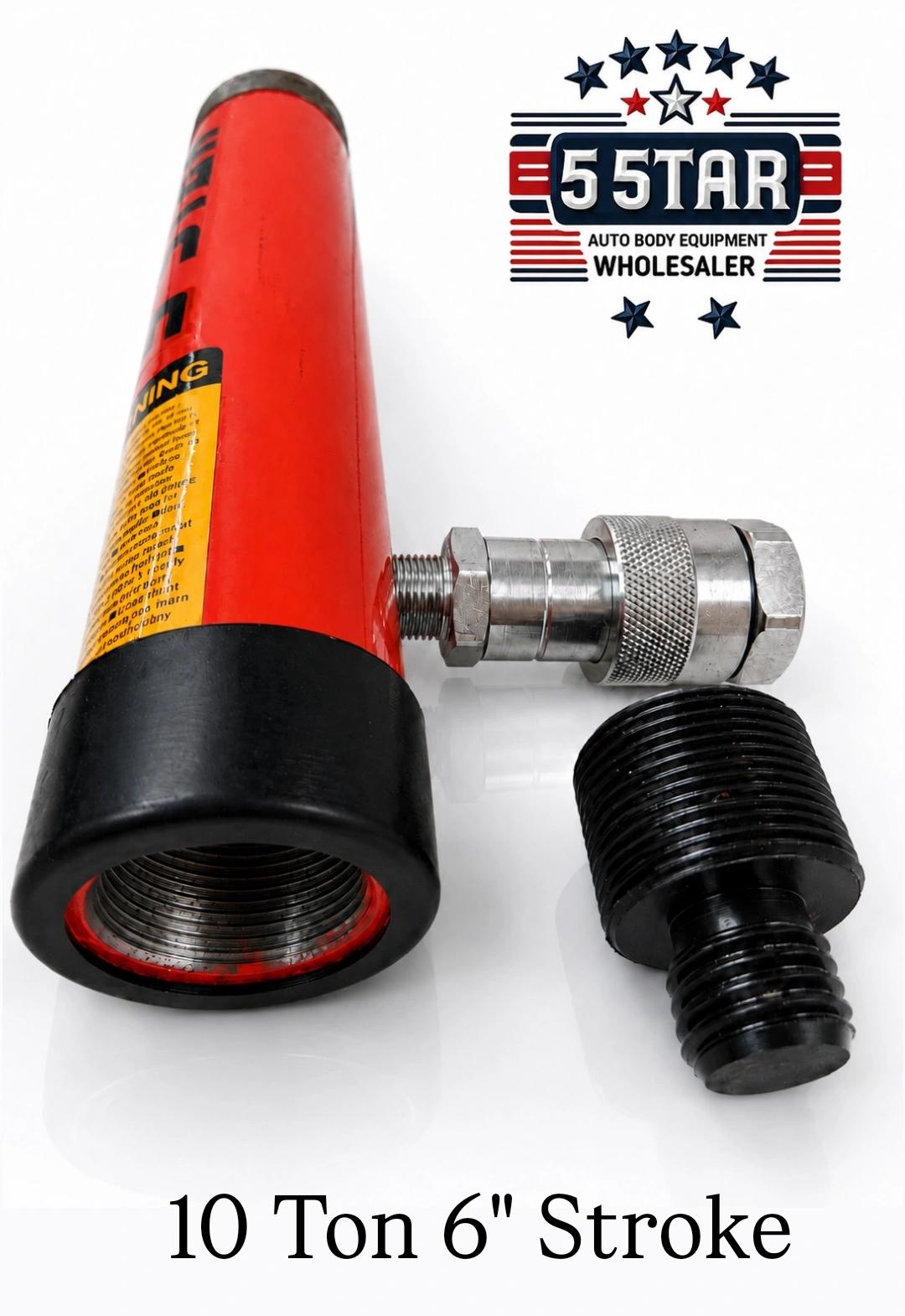

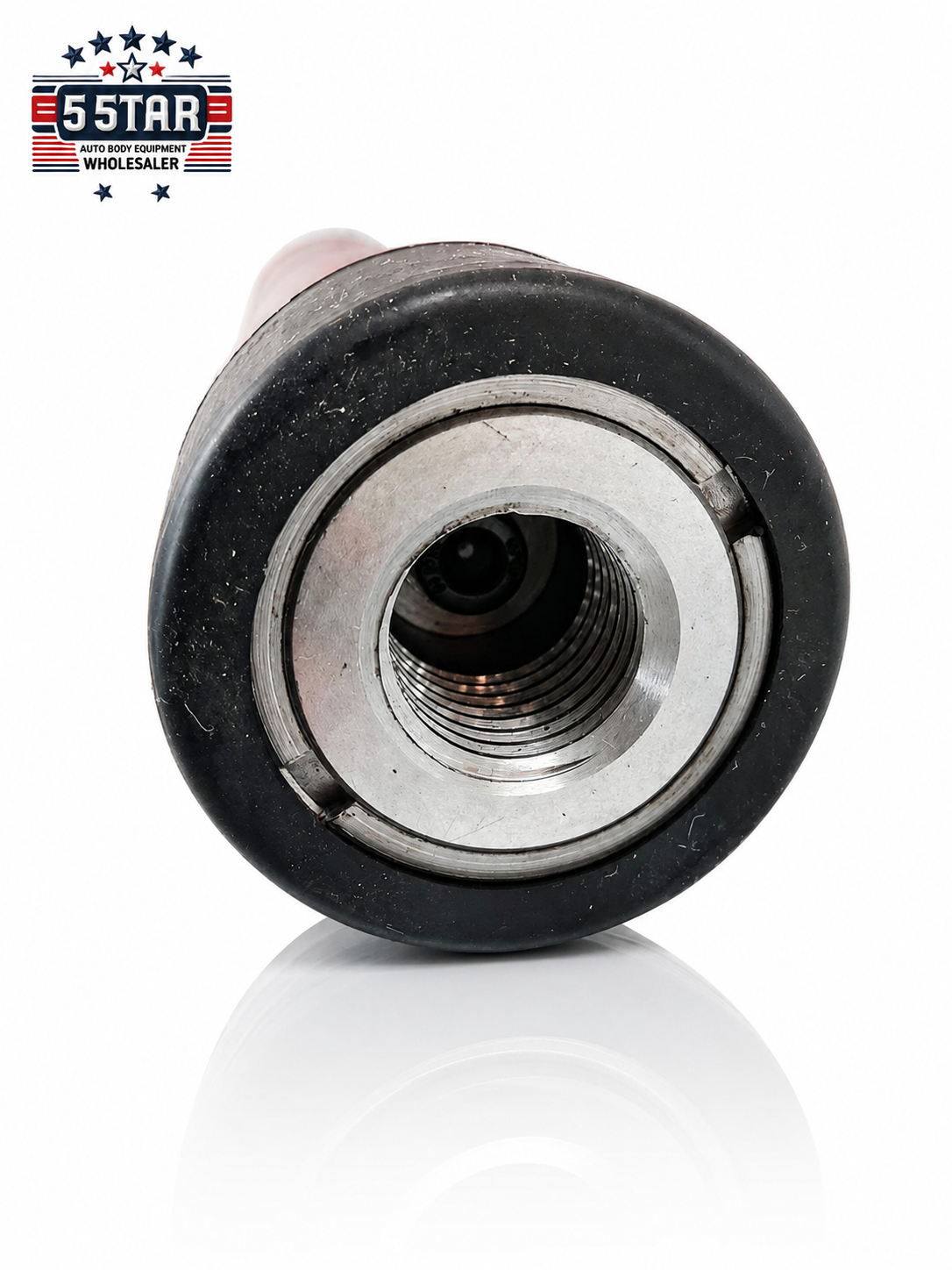

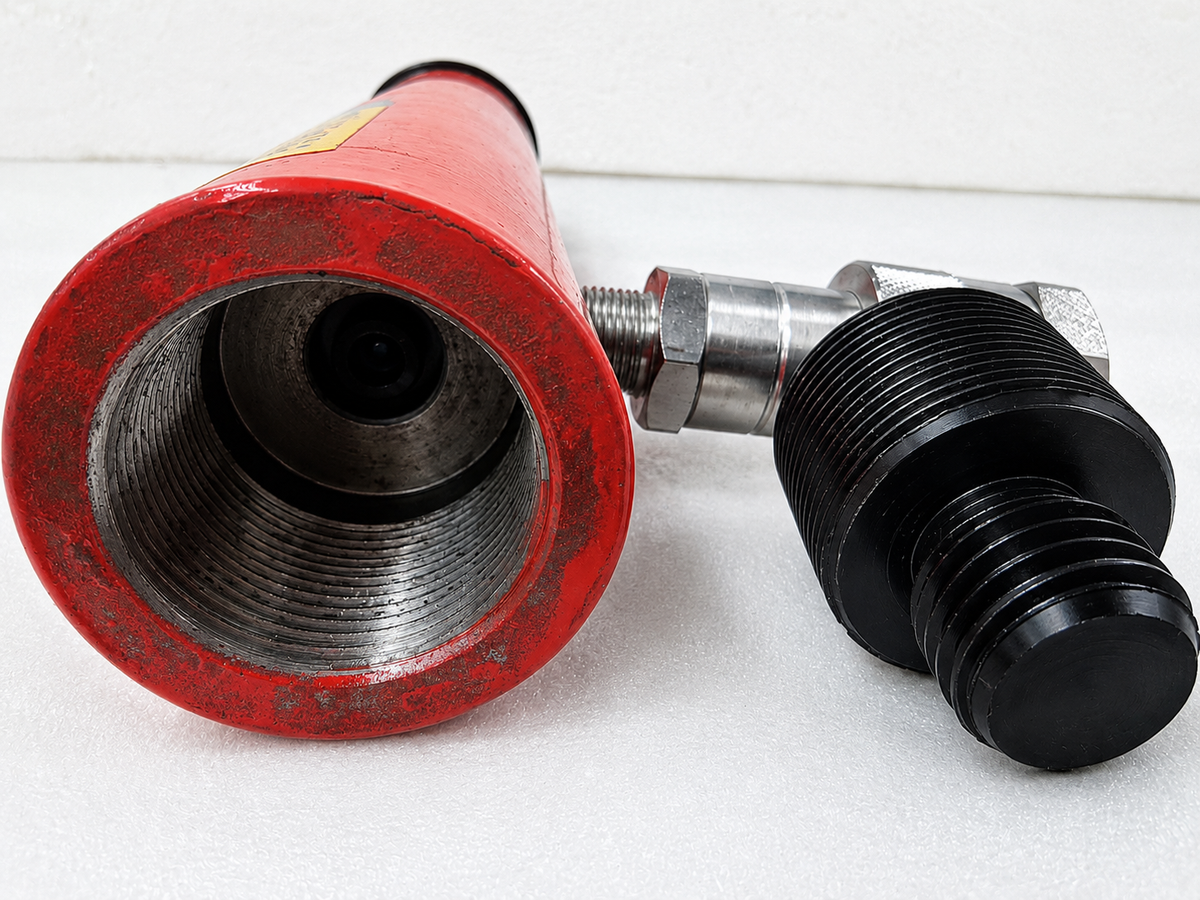

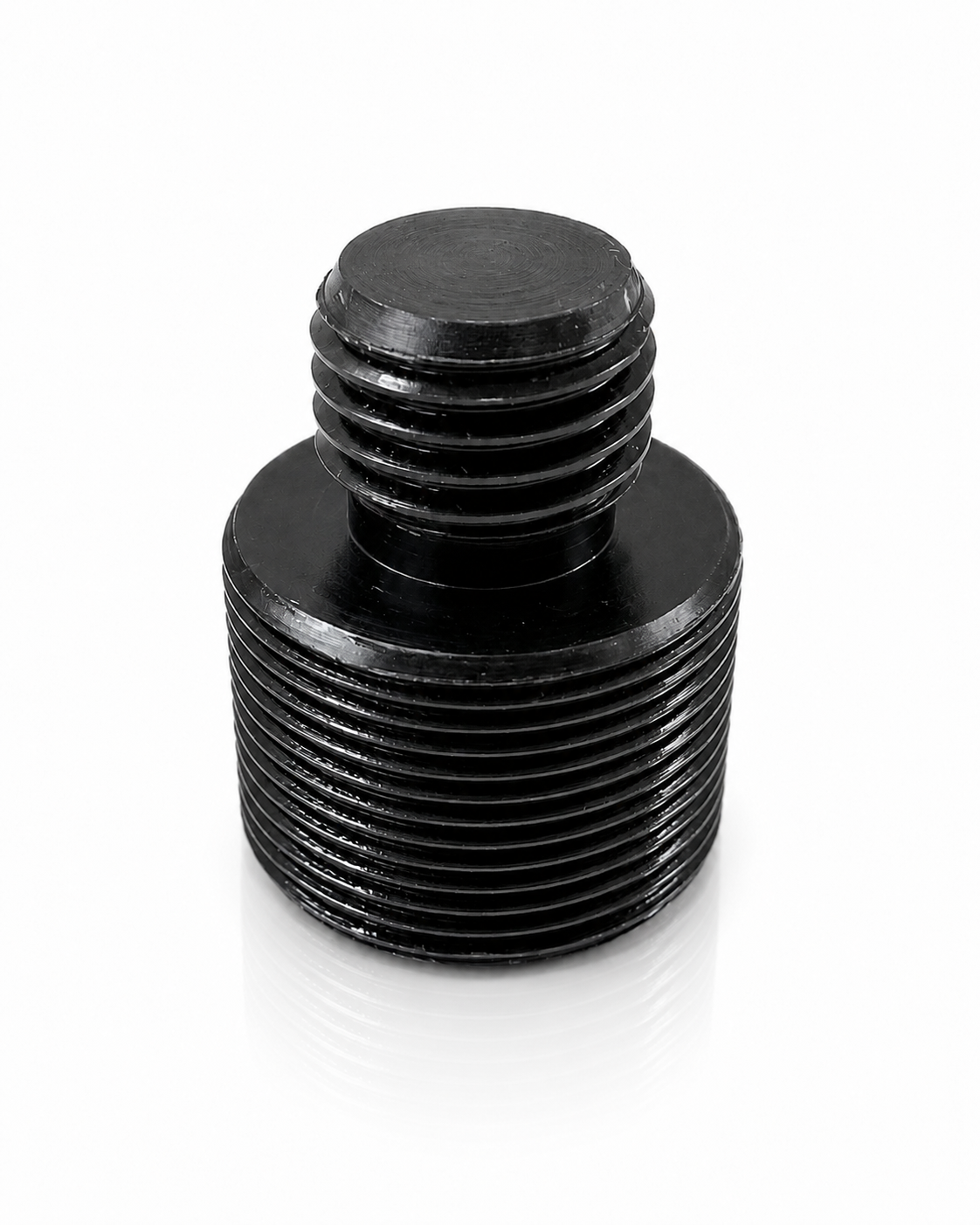

| Threaded Top & Base | 1¼"-11½" NPT |

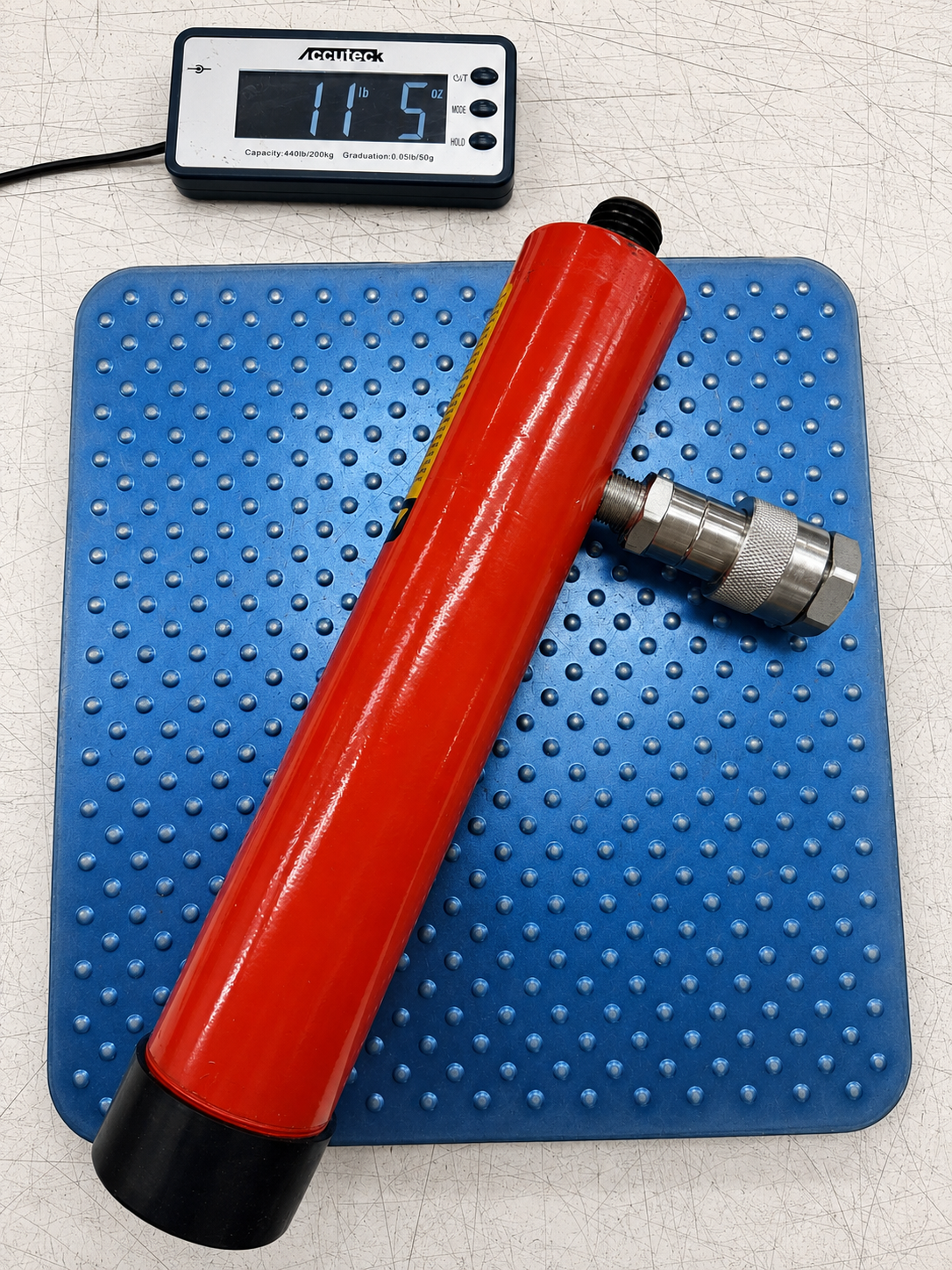

| Shipping Weight | 11.5 lbs. |
Key Features
- 10 Ton capacity for heavy-duty hydraulic work.
- 6" stroke provides strong travel range for shop and repair applications.
- Spring return design allows the ram to retract after pressure is released.
- Compact collapsed height makes it useful in tight working areas.

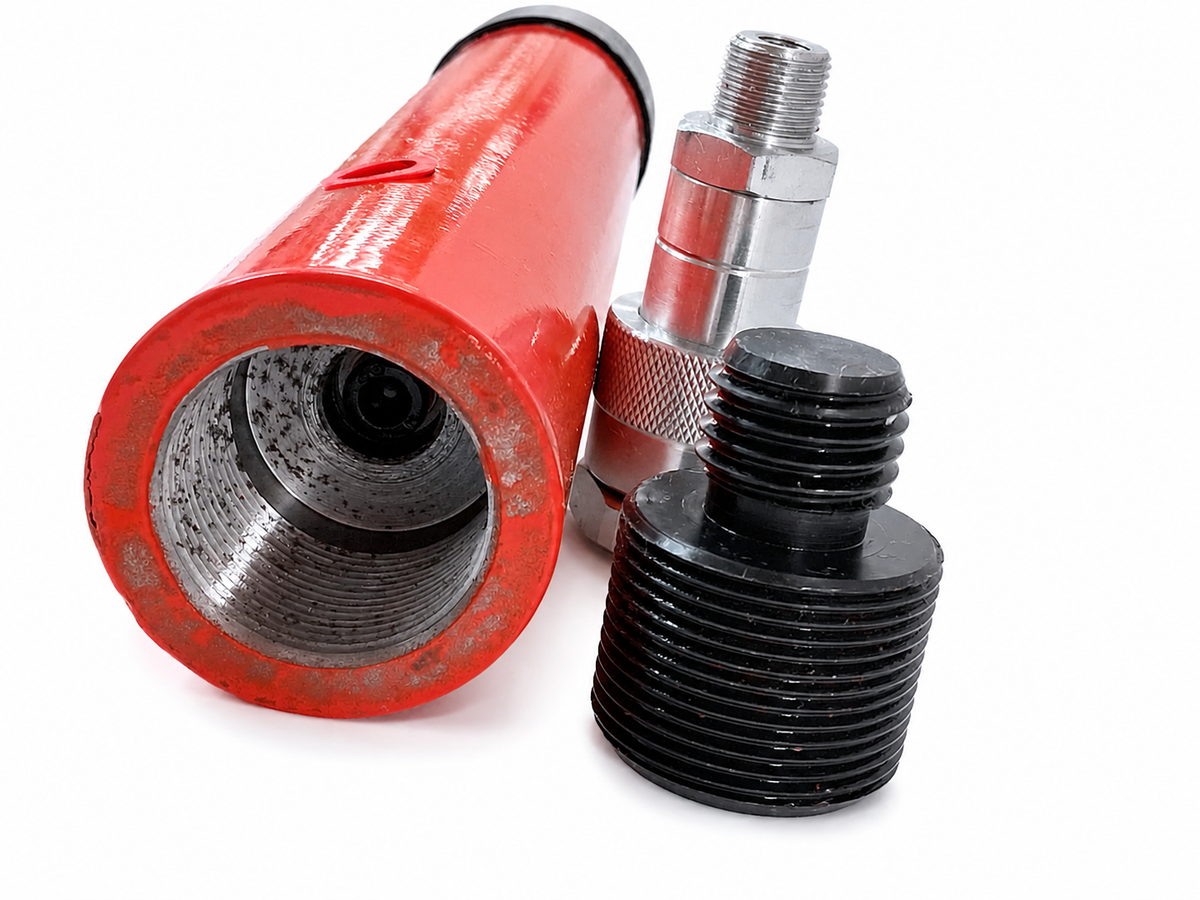

- Threaded top and base for versatile mounting and connection options.
- High operating pressure suitable for professional hydraulic systems.
- Ideal replacement or add-on ram for body shop, frame machine, and press use.
Compatibility
This hydraulic ram is commonly used with compatible hydraulic pumps, hoses, couplers, shop presses, frame machines, and pulling systems. Please verify your current equipment specifications, thread size, pressure rating, and connection requirements before purchase.
Applications
- Auto body repair shops
- Frame pulling machines
- Collision repair equipment
- Hydraulic shop presses
- Fabrication and repair work
- Industrial maintenance
- Heavy-duty pushing, pulling, lifting, and pressing applications
